VPFlowScope + VPFlowTerminal

€1,691 – €4,788

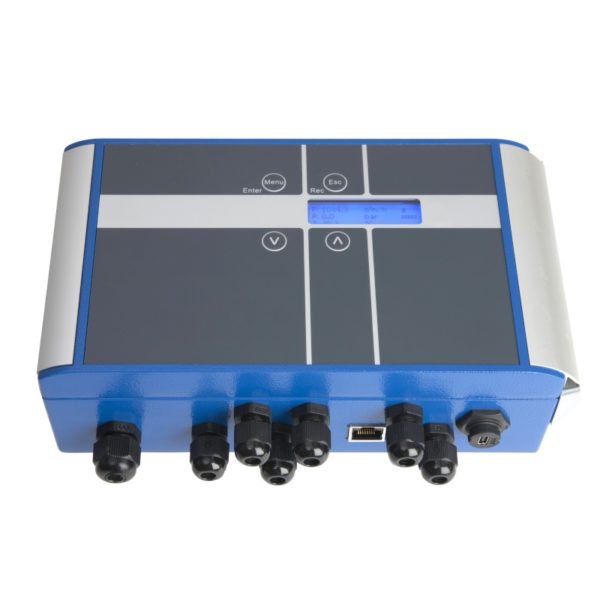

The VPFlowTerminal is a plug & play wall mount display with a built-in power supply and 2 million point data logger. The start kit features all you need to start measuring immediately, including 1 VPFlowScope flow meter. The VPFlowScope flow meter measures mass flow, pressure, temperature, and total flow simultaneously.

Clear
Product total
Options total
Grand total
  • Description
  • Additional information
  • Specifications
  • Documentation
Description

The VPFlowTerminal has 5 sensor inputs: 1 input for your VPFlowScope flow meter and 4 generic analog inputs. It can record up to 8 channels. This makes the collection and analysis of your compressed air data easier and quicker!

Features/ Benefits

  • Wall mount display
  • Built-in data logger with 2 million point data logger
  • 1 x VPFlowScope input (Probe, DP, In-line)
  • 4 Analog input channels
  • 3-line display with real-time information and configuration keys
  • Built-in power supply
  • Easy data retrieval via USB and VPStudio software to .CSV file.

Your order will include:

  • VPFlowTerminal pre-wired with 10m | 32.8 ft cable for flow meter
  • Your selected flow meter. You can choose from:

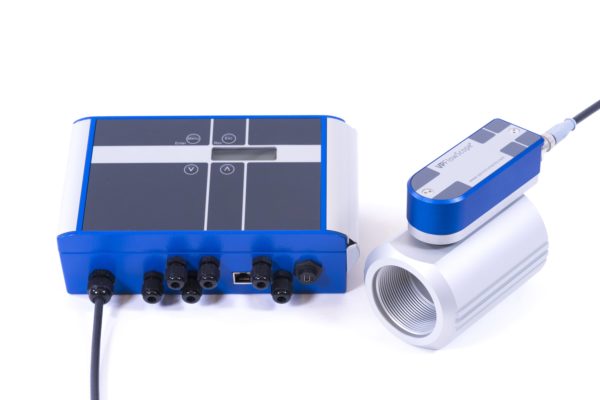

    • VPFlowScope In-line 0,5″, flow range up to 80 m3n/hr | 50 SCFM, no display
    • VPFlowScope In-line 1″, flow range up to 250 m3n/hr | 150 SCFM, no display
    • VPFlowScope In-line 2″, flow range up to 1000 m3n/hr | 600 SCFM, no display
    • VPFlowScope DP sensor for hot, saturated measurements, no display, flow range 20..200 mn/sec | 65..650 sfps

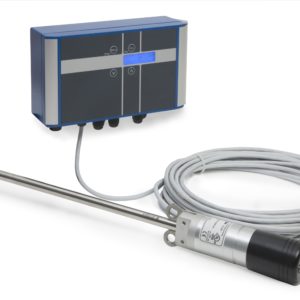

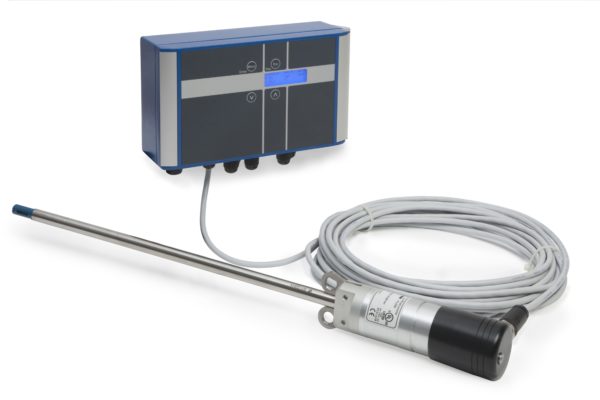

    • VPFlowScope Probe sensor for dry measurements, no display, flow range up to 150 mn/sec | 492 sfps
  • Mini USB cable
  • Flow direction sensitivity
  • A compression fitting with Teflon ferrule (i.c.m. only with VPFlowScope DP or Probe)
  • A safety cable ((i.c.m. only with VPFlowScope DP or Probe)
  • A calibration report
  • An English user manual
  • VPStudio software, free downloadable from www.vpinstruments.com.
Additional information
VPFlowScope flow meter

VPFlowScope In-line 0,5" with flow range up to 80 m3n/hr (50 SCFM) no display, VPFlowScope In-line 1" flow range up to 250 m3n/hr (150 SCFM) no display, VPFlowScope In-line 2" flow range up to 1000 m3n/hr (600 SCFM) no display, VPFlowScope DP sensor for hot, saturated measurements, no display, flow range 20..200 mn/sec (65..650 sfps), VPFlowScope Probe sensor for dry measurements, no display, flow range up to 150 mn/sec (492 sfps)

Specifications

Specifications

VPFlowTerminal

Input voltage 100 … 240 Vac mains (pre-wired)
Display Liquid crystal (LCD), 3 lines
Back light blue with auto power save
Data logger Two million point data logger
Signal inputs VPFlowScope + four optional 4 … 20 mA sensors (non-isolated, loop powered)
Sensor power supply 24 VDC
Maximum sensor current 4 x 25 mA for analog sensors, 1 x 150 mA for VPFlowScope
Flow meter connection M12, 8 pin
Dimensions l x b x h = 23 x 130 x 75 mm | 9.1 x 5.1 x 2.95″
Weight 1.6 kg | 3.53 lbs
Documentation

Documentation



VPFlowScope In-line

VPFlowScope DP and VPFlowScope Probe

Related products

Close

Hot Tap Drill Kit

€2,199

The universal tool to install your insertion flow meter in a compressed air system under pressure

Close

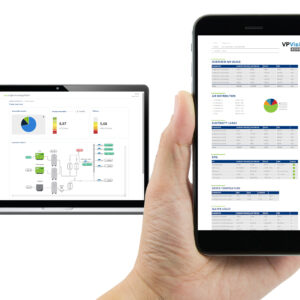

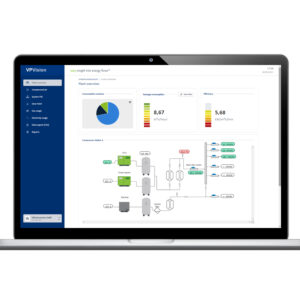

VPVision
