VPFlowScope Probe start kit

€2,954

Wet compressed air measurements. Insertion flow meter, 4-in-1.

  • Description
  • Specifications
  • Documentation
Description

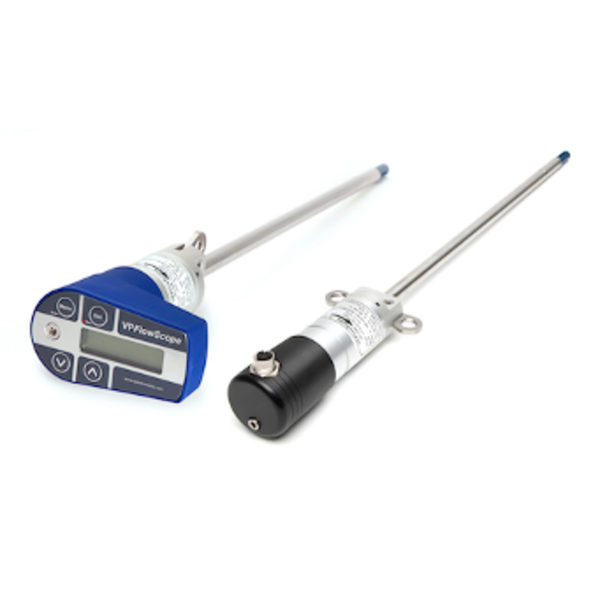

The VPFlowScope® Probe measures mass flow, temperature and pressure simultaneously. This probe can handle various diameters and measures in both directions. This makes it the ultimate compressed air audit tool used by leading auditors worldwide. Although the VPFlowScope Probe has been designed for dry compressed air, we also have a measuring probe for wet compressed air; the VPFlowScope DP.

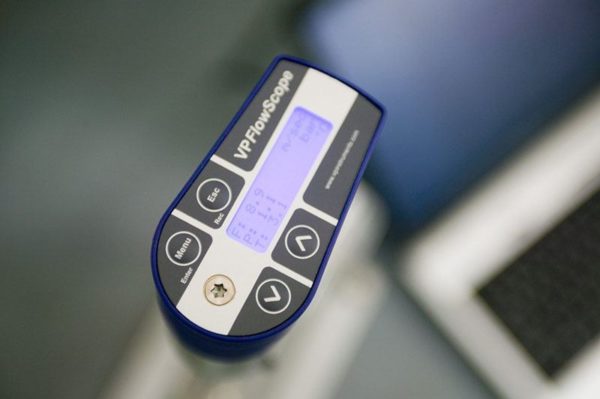

The bright blue LCD display provides real-time information and with the built-in data logger, you can record for certain periods of time.  Combine this with our VPStudio software on your pc and you can use this information to process data, print reports and analyze where and how exactly you can save money.

Features/ Benefits

  • ThermabridgeTM technology
  • High dynamic range
  • Three sensors in one instrument
  • Standard Modbus and 4 … 20 mA
  • Bi-directional
  • Quick return on investment

 Applications

  • Air audits
  • Demand side monitoring
  • Sub metering of compressed air
  • Ring networks (bi-directional)

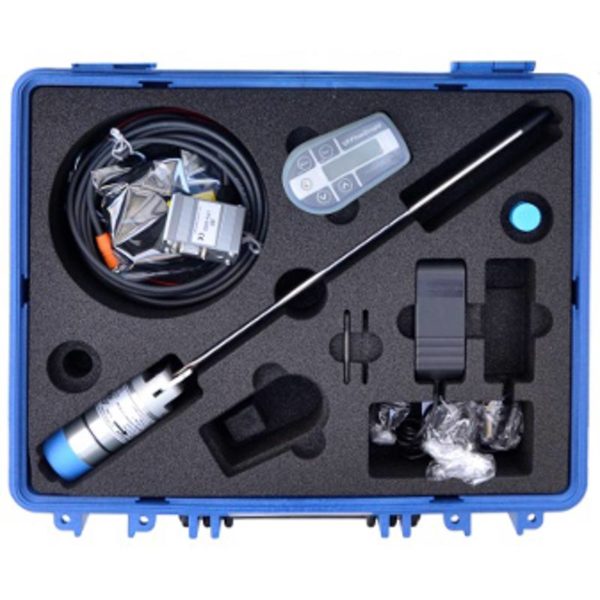

Your order will include:

  • The VPFlowScope Probe
  • A three-row LCD display with 2.000.000 data points data logger
  • Flow direction sensitivity
  • A rugged explorer case
  • An interface box JB5 with 5m/16,4 ft cable (M12 connector) + 12V power supply
  • An RS485 to USB cable
  • A compression fitting with Teflon ferrule
  • A safety cable
  • A calibration report
  • An English user manual
  • VPStudio software
Specifications

Specifications

Flow0.5 … 150 mn/sec | 0 … 500 sfps
Bi- directionalIncluded
Pressure0 … 16 bar G | 0 … 250 psi gauge
Temperature0 … +60 °C | 0 … +140 °F
Gas typesCompressed air and nitrogen. (calibration report is for compressed air)
OutputsRS485 (Modbus RTU)
Probe length400 mm
Power supply12 … 24 VDC+/- 10% Class 2 (UL)
ApprovalsCE, UL/CUL
