Click to enlarge
HomeAll products VPLog-i / -R

VPLog-i / -R

€361

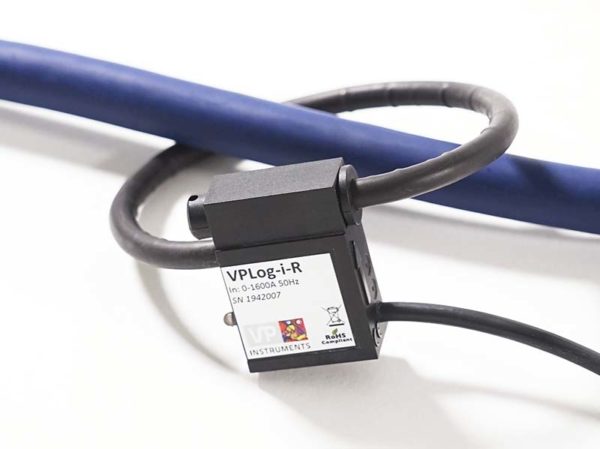

The easiest power meter in the world. The VPLog-i is a Rogowski type coil that measures AC currents (true-RMS on a single-phase power cable). Just open the sensor and wrap around the power cable you want to measure. The LED provides feedback.

Clear
  • Description
  • Additional information
  • Specifications
  • Documentation
Description

Easy and simple: Just open the power meter and wrap around the power cable you want to measure. The rate at which it blinks is proportional to the output current. The VPLog-i offers the best solution for power measurements in audits or in less critical measurements.

The VPLog-i is available in two models, where the main difference is the output signal.

  • VPLog-i offers a 4..20mA and pulse output.
  • VPLog-i-R features an RS485 (Modbus RTU) output.

Power Meter Features/ Benefits

  • Very easy and quick installation
  • Plug and play
  • For short-term and permanent measurements


Applications

  • Power consumption of large consumers (i.e. compressors, dryers, pumps, water chillers)
  • Submetering
  • Cost allocation
  • Baseline condition monitoring
  • Energy management
  • Efficiency calculations (i.e. compressor electrical usage vs output)

The VPLog-i measures the input power of your compressor’s electric motor. When combined with a flow meter, it can be used to determine the actual efficiency of the compressor.

Additional information
Model

VPLog-i 100A (4..20mA and pulse), VPLog-i 200A (4..20mA and pulse), VPLog-i 400A (4..20mA and pulse), VPLog-i 800A (4..20mA and pulse), VPLog-i 1500A (4..20mA and pulse), VPLog-i-R 100..1600A (Modbus RTU)

Specifications

Specifications

VPLog-i

VPLog-i-R

Accuracy +/- 1% full scale. +/- 1% full scale.
Power supply 6 .. 30 Vdc 7 .. 28 Vdc
Power consumption 4 … 20 mA 11 mA
Current input (measurement range) 5 models available from 100 to 1500 Amps. 100 .. 1600 A-rm
Outputs 4 … 20 mA and Pulse RS485 (Modbus RTU)
Pulse rate 0 … 2.66 Hz N.A.
Coil diameter 7 mm | 0.28″ 6 mm | 0.24″
Housing W x H x D 26.7 x 41.4 x 13.6 mm | 1.1 x 1.6 x 0.6” 26.7 x 41.4 x 13.6 mm | 1.1 x 1.6 x 0.6”
Operation temperature range -20 … 70 °C | -4 … 158 °F 20 … 70 °C | -4 … 158 °F
Coil length 170 mm | 6.7″, 250 mm | 9.8″ 250 mm | 9.8″
Documentation

Documentation
