VPFlowScope M start kit
Click to enlarge
HomeAll products VPFlowScope M start kit

VPFlowScope M start kit

€3,140

Dry compressed air measurements. Insertion flowmeter, 4-in-1.

  • Description
  • Specifications
  • Documentation
Description

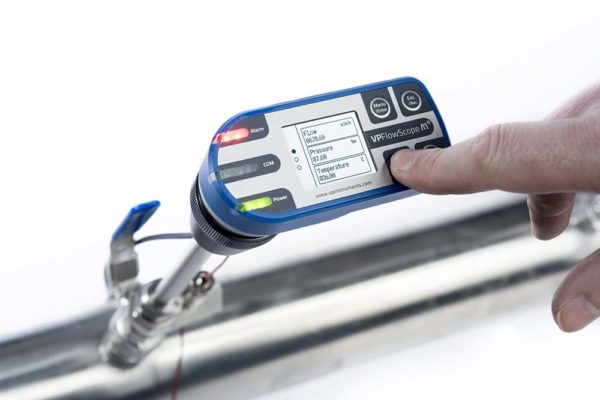

The VPFlowScope® M is the 4-in-1 insertion flow meter for compressed air. It can be installed under pressure and measures bi-directional flow, pressure, temperature and totalized flow simultaneously.

The VPFlowScope M is the next step in gas measurement. You are industry 4.0 ready, with the additional Ethernet output. With the VPFlowsScope M re-calibration is history: simply exchange the patented VPSensorCartridge!

The VPFlowScope M start kit offers all you need to start measuring today, including the Transmitter with built-in data logger, cables, and software. Start measuring today with the plug and play start kit!

Features/ Benefits

  • 4-in-1 instrument: bi-directional flow, pressure, temperature, totalized flow
  • For compressed air
  • Patented VPSensorCartridge®: no more recalibration required
  • Ethernet interface: Industry 4.0/IOT ready
  • Ultra-compact size and low weight
  • Ethernet (Modbus/ TCP)
  • RS485 (Modbus RTU)
  • 4 .. 20 mA linearized, pulse mode or alarm output
  • USB interface for configuration and downloading of data log files

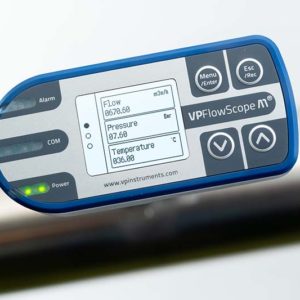

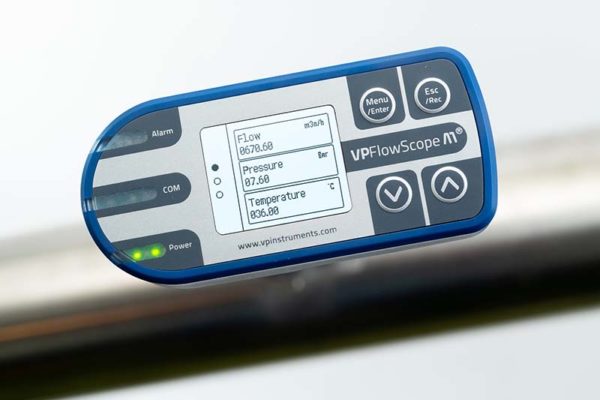

  • TFT color display
  • Built-in data logger
  • Bi-directional

Applications of this compressed air flow meter

  • Demand-side compressed air monitoring
  • Air audits
  • Submetering of compressed air
  • Ring networks (bi-directional)
  • Industrial gas monitoring (air, nitrogen, carbon dioxide, argon, and other dry, noncorrosive industrial gases)
  • Cost allocation
  • Leak detection

Your order will include:

  • VPFlowScope M Transmitter with display + data logger

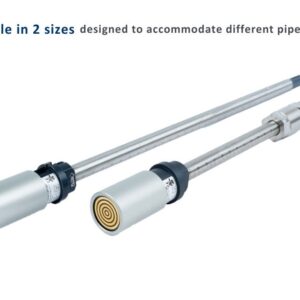

  • VPSensorCartridge (0..150 mn/sec, 0..10 bar, 0..60 deg C)
  • Bi-directional option
  • Mini USB cable
  • 24V Power supply
  • Compression fitting with proprietary, adjustable safety cable
  • Cable 5m/16.4ft for ethernet with 4-pin M12 and RJ45 connector
  • Rugged blue explorer case
  • ISO Calibration report
  • English user manual
  • VPStudio software (downloadable from www.vpinstruments.com)
Specifications

Specifications



Display Included
Data logger 365 days @ 1 second interval
Outputs RS485 (Modbus RTU) | 4 .. 20 mA output or pulse or alarm | Mini USB, behind sealed cap (for configuration | Ethernet
Dimensions 50 x 108 x 36 mm | 1.97 x 4.25 x 1.42 inch
Weight 220 grams | 7.76 ounces
Protection grade IP65 | NEMA 4 when mated to VPSensorCartridge
Power supply 12 VDC .. 24 VDC +10% Class 2 (UL)
Power Consumption 1 Watt (no flow) 3.5 Watt (full flow) +/- 10% | Varies per VPSensorcartridge type and transmitter type
Approvals EN 60950-1, EN 61326-1, EN 61000-3-2, EN 61000-3-3, EN 61326-1,  UL 508



Documentation

Documentation

Related products

Close

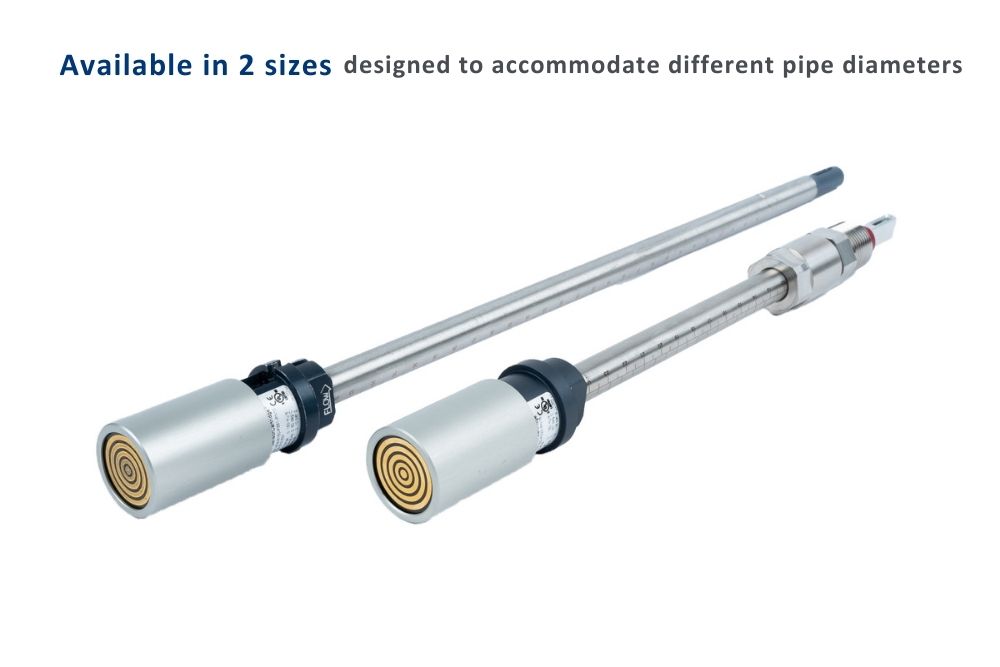

VPSensorCartridge for VPFlowScope M

€565 – €662

Get your replacement VPSensorCartridge here.

Close

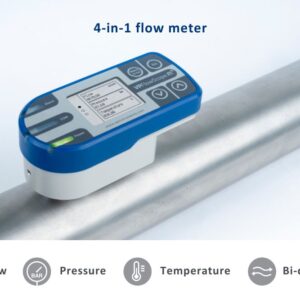

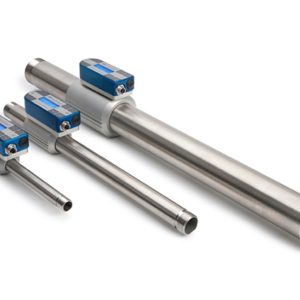

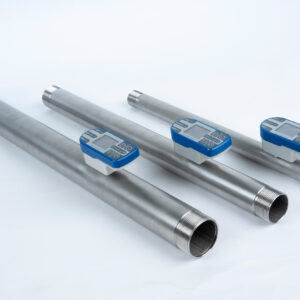

2″ VPFlowscope In-line start kit

€1,584 – €1,619

Flow range up to 1000 m3/hr
/ 600 SCFM

Close

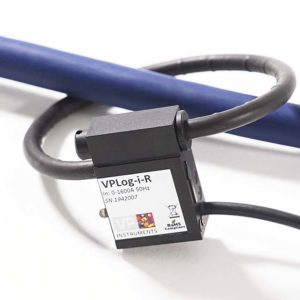

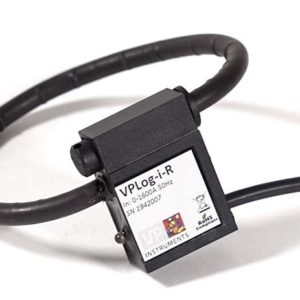

VPLog-i / -R

€361

The easiest power meter in the world. Measures AC current.

Close

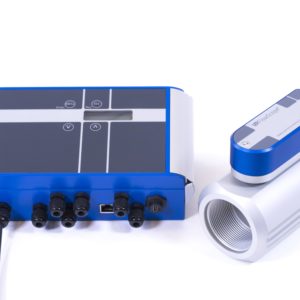

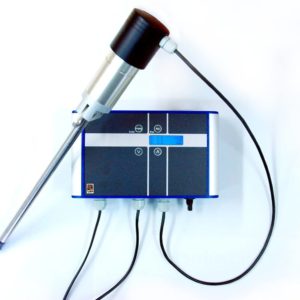

VPFlowScope + VPFlowTerminal

€1,691 – €4,788

Your flow meter with VPFlowTerminal wall mount display / datalogger

Close

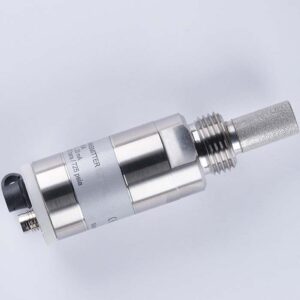

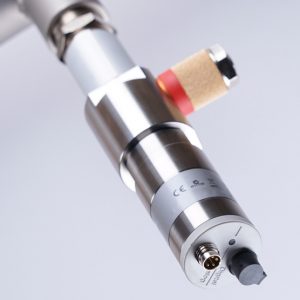

VP Dew Point Sensor start kit
