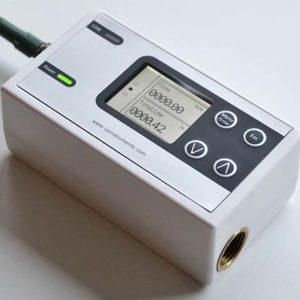

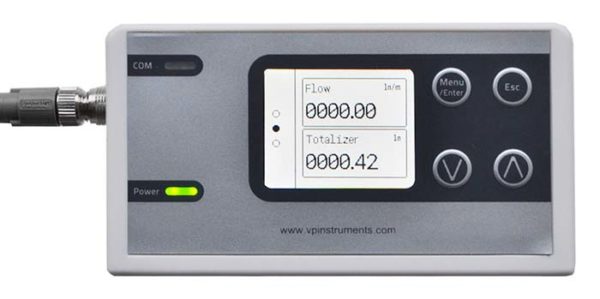

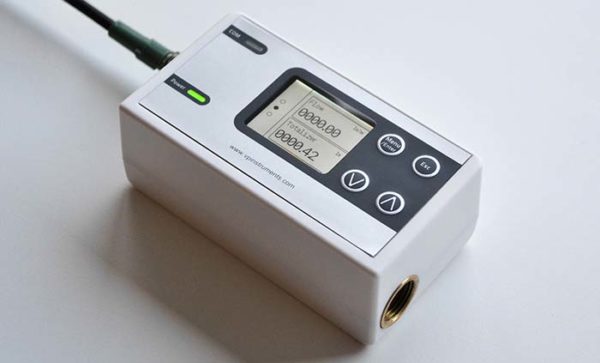

VPFlowScope In-line 3/8″
€975
The VPFlowScope In-line 3/8” is the perfect solution to measure low flows of compressed air and oxygen. Getting insight leads to optimization of your air/oxygen system, reduction of consumption and you can allocate costs.
Description
The VPFlowScope In-line 3/8” measures flow, total flow, and temperature. Thanks to the patented Thermabridge™ technology, the VPFlowScope In-line can perform accurate flow measurements. The built-in display will show the actual and total flow, and the Modbus and analog 4 .. 20 mA outputs enable you to interface with VPVision or other monitoring systems.
Features/ Benefits
- Measures flow, total flow, and temperature simultaneously
- Patented Thermabridge™ technology for dry, clean gas measurements
- For compressed air and/or oxygen
- RS485 (Modbus RTU) + 4..20 mA output
- 2-line TFT display with real-time information and configuration keys
- Power and communication LEDs
- Easy to install and compact size
Applications of VPFlowScope In-line 3/8″
- Point of use in compressed air systems
- Output of oxygen generators
- Consumption measurement
- Leakage measurement
- Cost allocation and measuring your distribution network
Specifications
Specifications
| Flow range | 2.15..50 l/min | 0.09..1.77 CFM |
| Accuracy | 5% of full scale under calibration conditions |
| Temperature | 20 .. 32 °C | 68 .. 89.6 °F |
| Reference conditions | 20 °C, 1000 mbar | 68 °F, 14.50 psi |
| Gas types | Oxygen, compressed air |
| Diameter | 3/8″ |
| Display type | 1.8″ TFT for real-time flow and total flow readout |
| Outputs | RS485 (Modbus RTU) | 4 … 20 mA |
| Electrical connection | M8 5-pin female connector |
| LED status | LED indicators for power and communication |
| Material | Brass, polycarbonate |
| Pressure rating | 0 … 10 bar gauge | 0 … 150 psi gauge |
| Power supply | 14 … 24 VDC |
| Certification CE | EN 60950-1, EN 61326-1, EN 61000-3-2, EN 61000-3-3, EN 61326-1 |
| Mounting connection | Mount between pipe ends using Hylok SICMC-6-6G |
