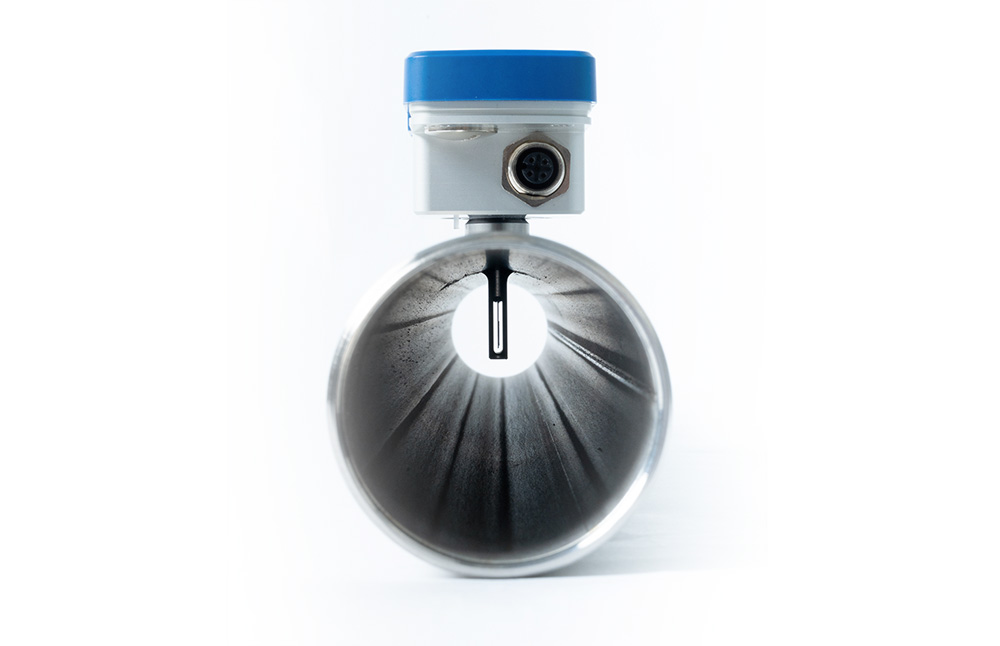

VPFlowScope M Thermal In-line flow meter

The new Industry 4.0 VPFlowScope® M Thermal In-line is the ideal flow meter for point-of-use consumption measurements of compressed air. Thanks to our proprietary Thermabridge™ technology, you can measure bi-directional flow, pressure, temperature, and total flow simultaneously.

The flow meter is perfect for smaller diameters, as can be found in the demand side of your air network, point of use, or in small to medium size compressed air systems. It provides all the data you need to optimize your consumption. Whether standalone or integrated into an energy management system like VPVision, there is a version to fit your needs.

Features/ Benefits

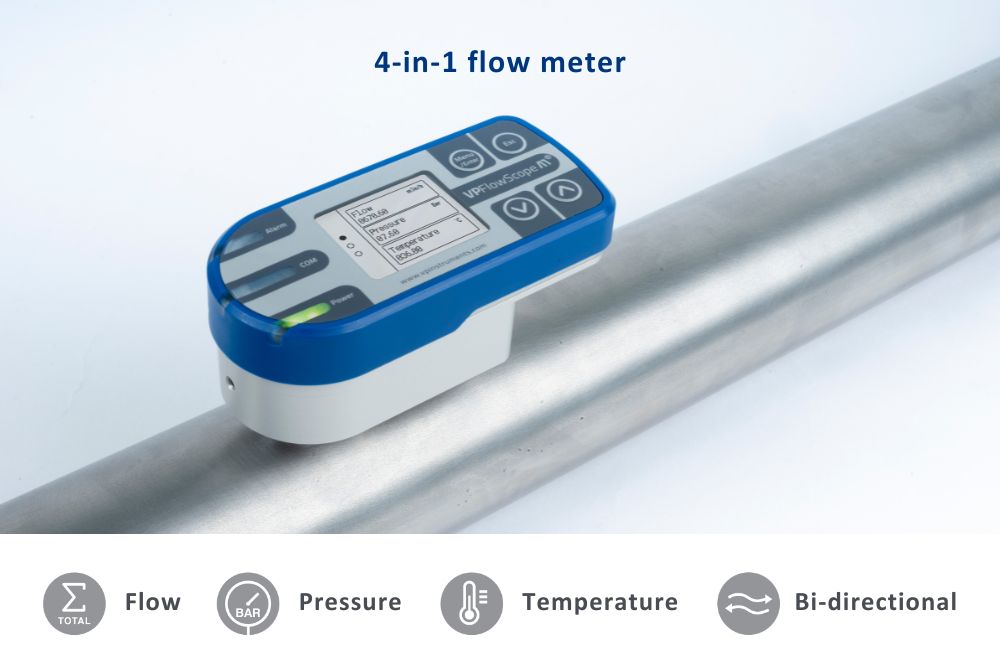

• 4-in-1 sensors in one instrument
• For smaller diameters: 1″ tot 2″

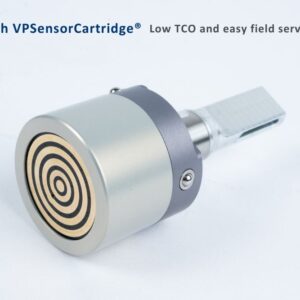

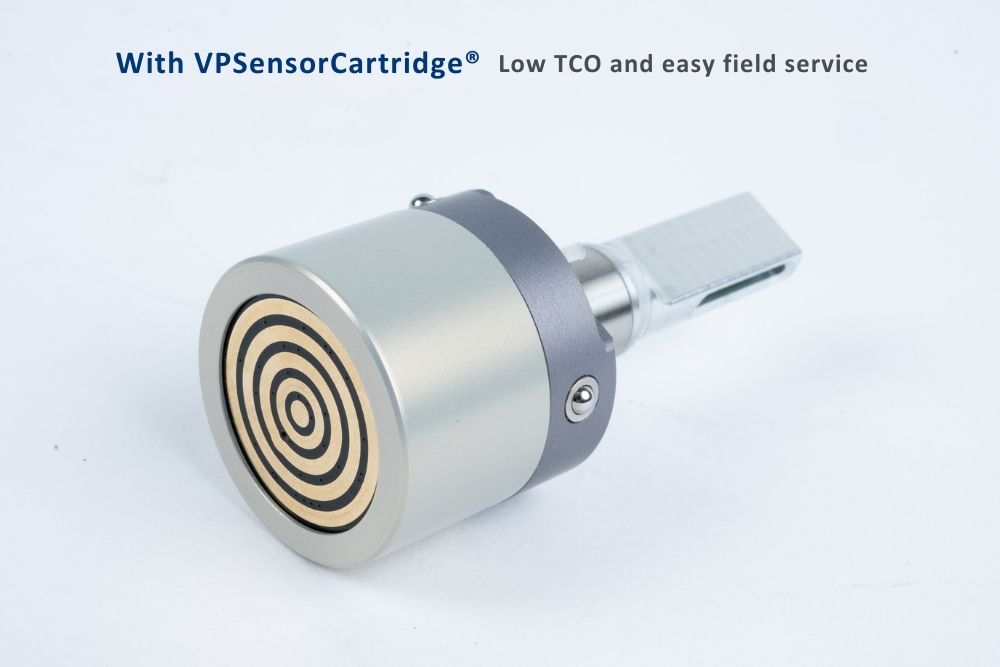

• Lowest TCO and easy field service with patented VPSensorCartridge
• Quick Connect system for easy and precise installation
• Versatile outputs: PoE or Modbus, analogue with optional alarm mode
• Seamless integration into VPVision energy monitoring platform
• Display with real-time information
• Integrated data logger for audits

Applications

• Compressed air measurement
• Submetering
• Leakage management
• Energy monitoring
• Cost allocation
• Pneumatic equipment condition monitoring
• For industrial gas monitoring (N2, He, Ar, CO2, and other dry, non-corrosive industrial gases), ask our sales team for a quote: sales@vpinstruments.com

Your order will include:

• VPFlowScope^® M Thermal In-line Cartridge

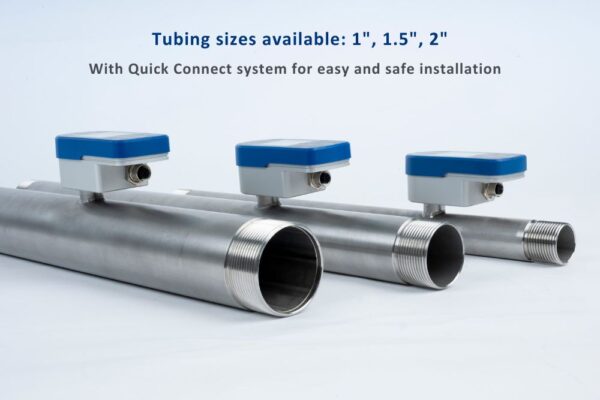

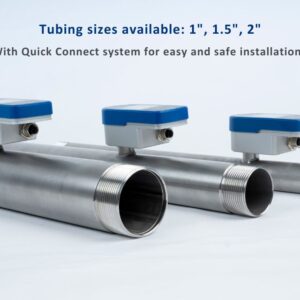

• Combining with a Tubing kit, results in these flow ranges:

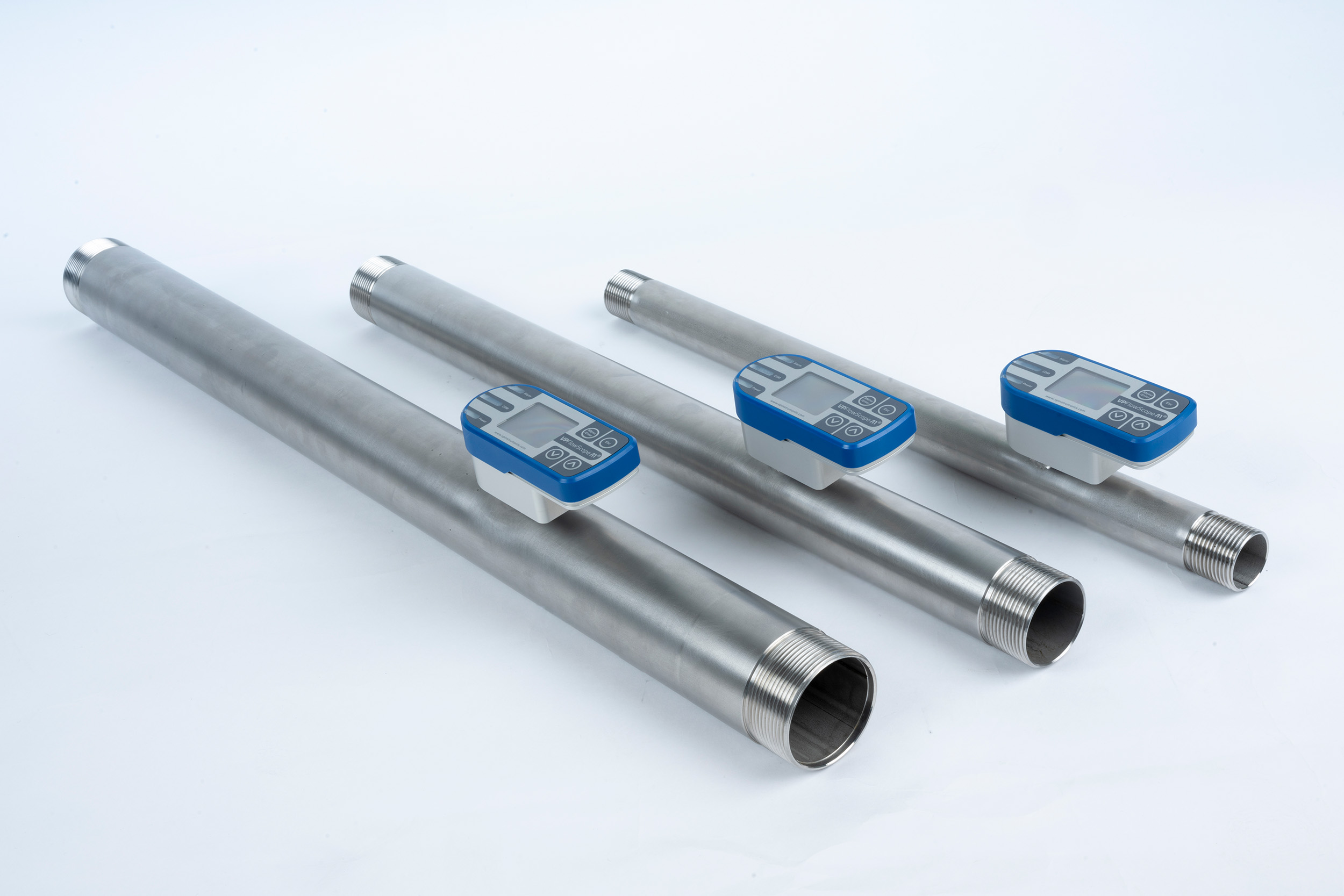

  • Model 1″ – Flow range: 0 .. 250 m³/hr | 0 .. 147 SCFM
  • Model 1.5″- Flow range: 0 .. 600 m³/hr | 0 .. 353 SCFM
  • Model 2″ – Flow range: 0 .. 1000 m³/hr | 0 .. 589 SCFM
  • Select BSP or NPT thread for your Tubing Kit
• Transmitter with display and built-in data logger. Select outputs:
  • Modbus/4..20mA, comes with 5m | 16.4ft Cable with M12 plug on one side and open wires on other side for permanent installation.
  • PoE, comes with Ethernet Cable 5m/16.4ft. for Modbus TCP communication
• ISO Calibration report
• Mini USB cable for connection to the free VPStudio software, downloadable at www.vpinstruments.com.

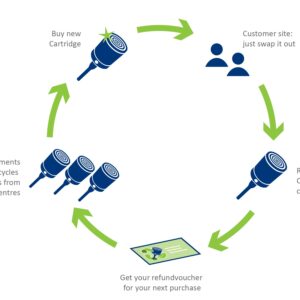

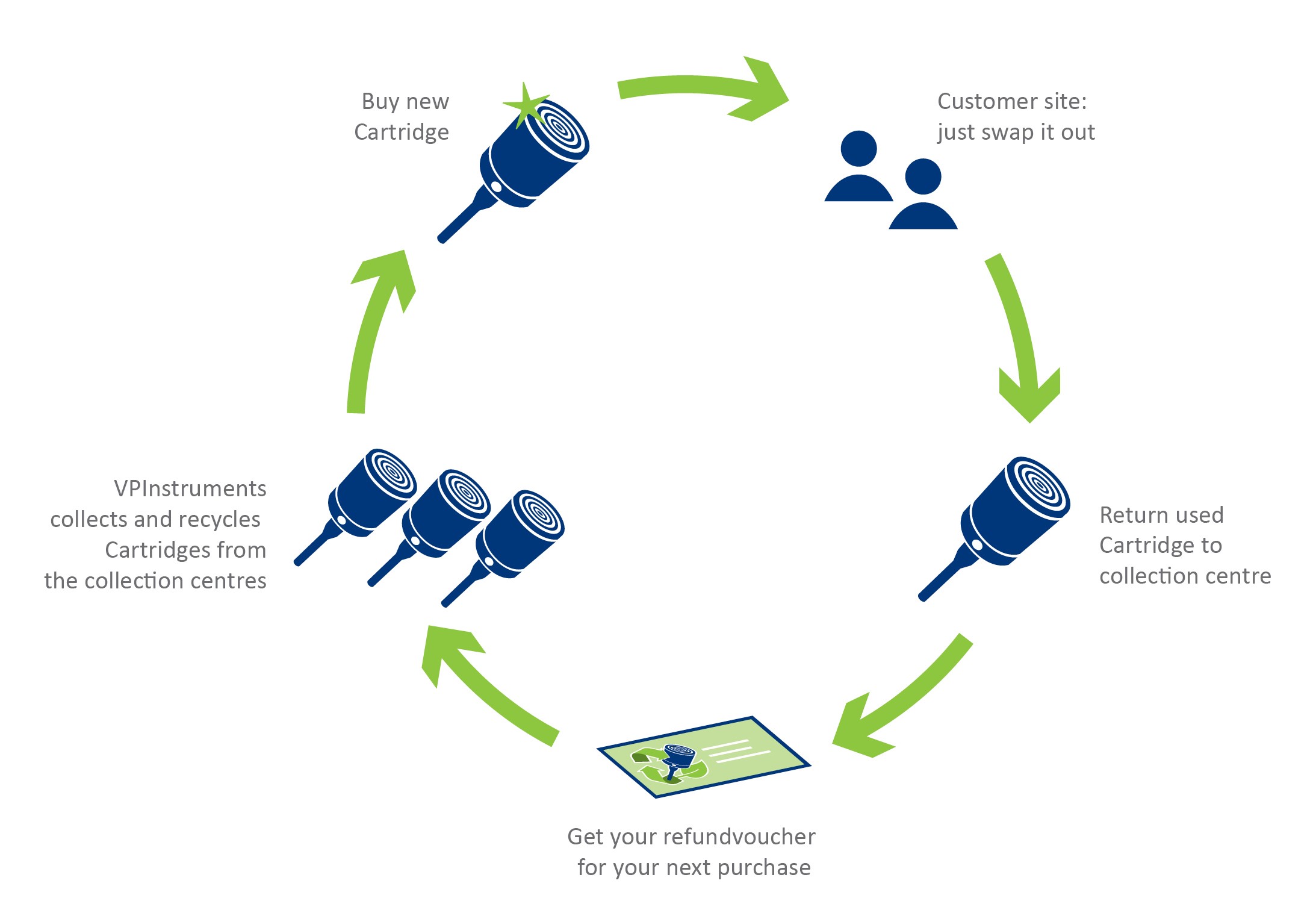

VPCartridgeSwap+
Swap. Return. Earn.

Keep your VPFlowScope M in top condition with fast, cost-effective, and sustainable maintenance. Unlike traditional flow meters that require off-site recalibration, resulting in removal, shipping delays, and measurement downtime. The VPFlowScope M enables on-site recalibration in just minutes with a simple VPSensorCartridge swap. No downtime. No disruption. Just accurate data.
